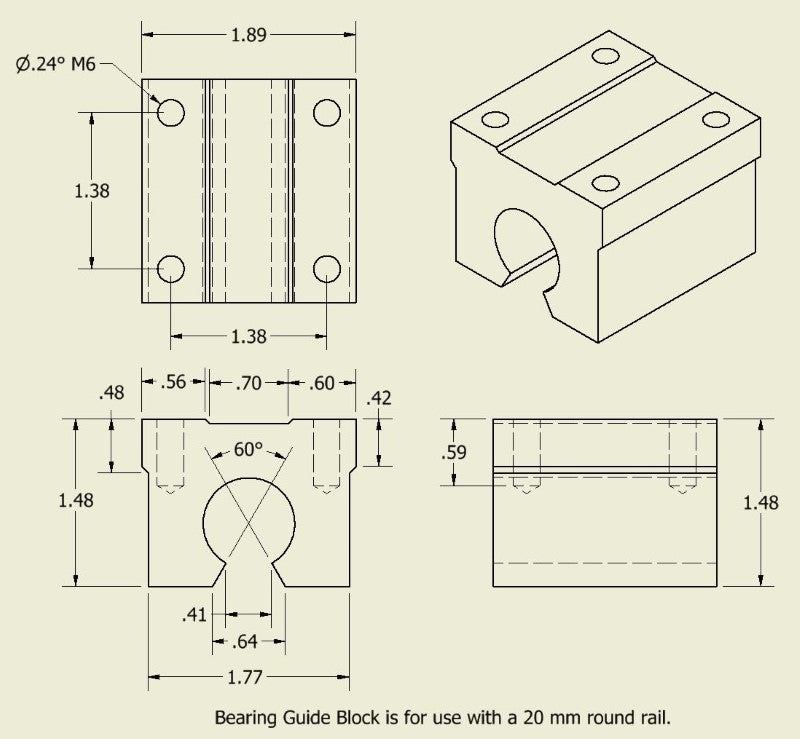

Linear bearing guide block drawing and dimensions for 20 mm round rail

Linear Ball Bearing Block 20mm (0.78")

Price Options Your Cart

Linear Ball Bearing Block 20mm

$12.00

Includes free technical support.

Introduction:

These 20mm Linear Ball Bearing Blocks are made to fit on our 20mm Linear Guide Rails.

Description:

These linear ball bearing blocks (also called pillow blocks), are great for linear motion applications. The block's ball bearings along with the self aligning block combine to compensate for misalignment in the application.

Material: Aluminum Housing

Bearings: Linear Ball Bearing

Precision Rating: C7

Guide Width: 20mm (0.78 in)

Dynamic load is 880 kgf

Static load is 1370 kgf

Ask a question about the Linear Ball Bearing Block 20mm (0.78"):

Previously answered questions:

Click on the question to reveal the answer.

[Linear Ball Bearing Block 20mm (0.78")] What size are the threaded holes on your bearing blocks?

These bearing blocks (20mm) use M6 screws for mounting.
Click the link to add information to this solution:
[417] What size are the threaded holes on your bearing blocks?
