6.0 Amp Stepper Motor Driver 400-25000 Steps Per Revolution

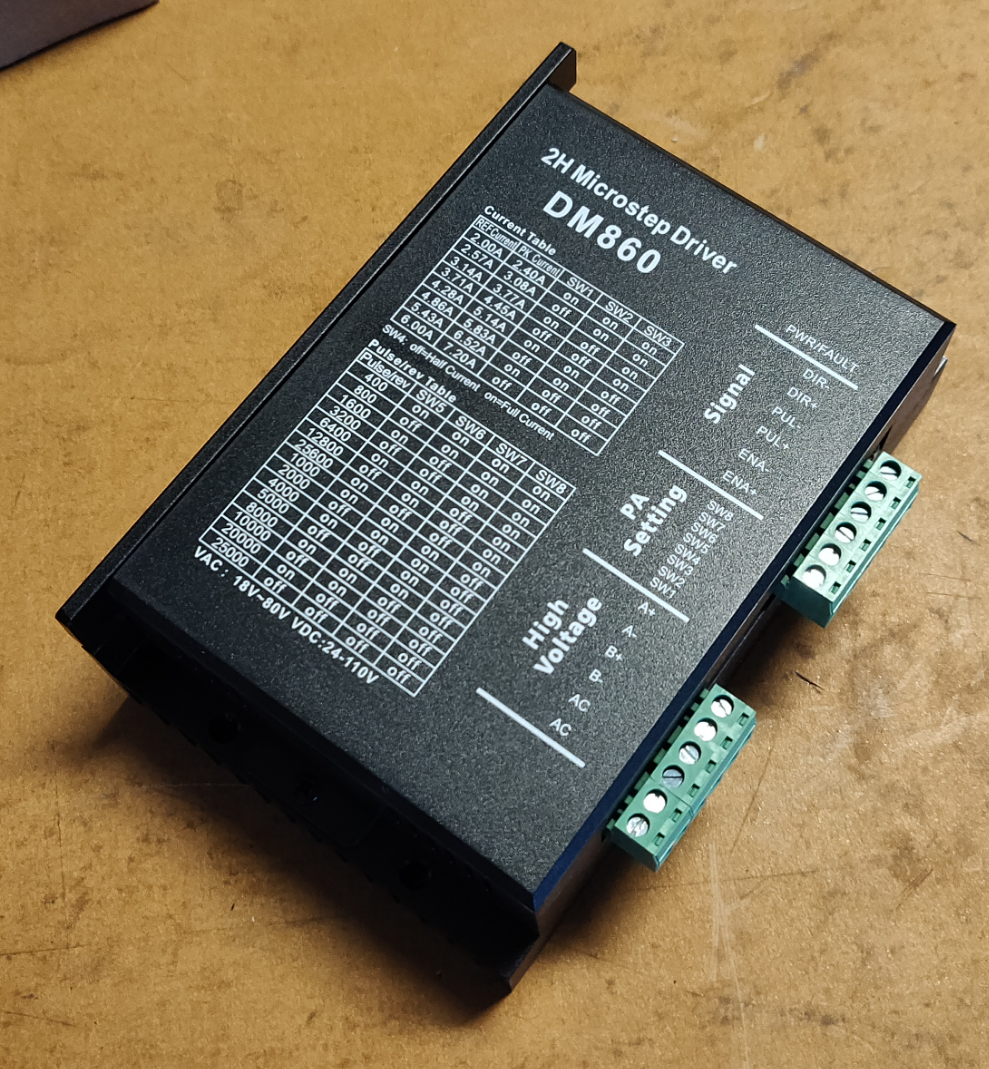

The DM860 is a fully digital stepper motor driver designed to control two-phase hybrid stepper motors, offering precise motion control with advanced features.

Key Features:

Advanced Control Algorithms: Utilizes DSP technology with anti-resonance and multi-stepping algorithms for optimal torque and smooth motor operation.

Wide Voltage Range: Operates with input voltages from 18 to 80 VAC or 24 to 110 VDC, providing flexibility for various applications.

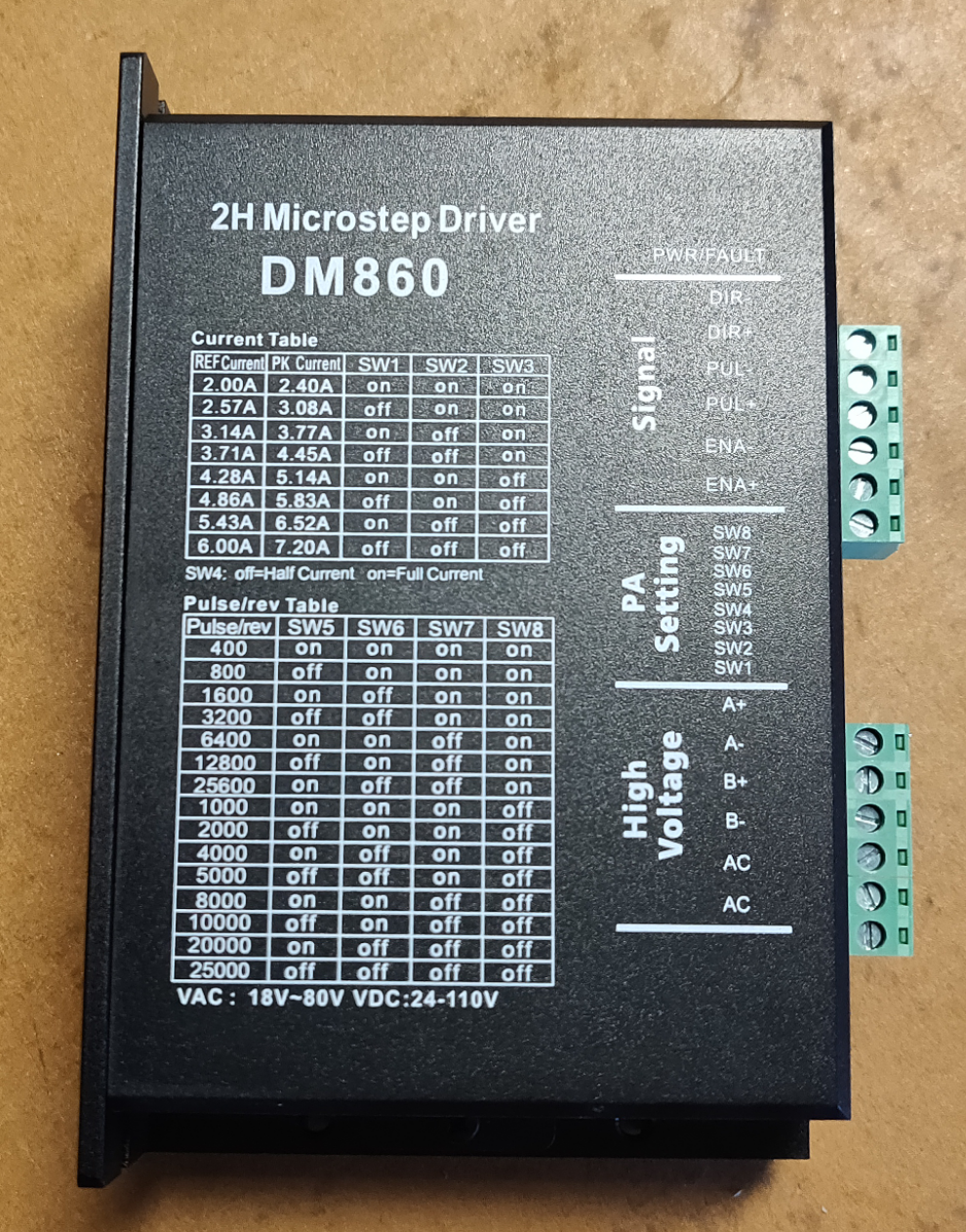

Adjustable Output Current: Offers 8 selectable peak current settings ranging from 2.4A to 7.2A to match different motor requirements.

Microstepping Capabilities: Supports 16 microstep resolutions, including settings from 400 to 51,200 steps per revolution, allowing for precise positioning.

Automatic Idle-Current Reduction: Reduces current to 50% or 90% of the selected dynamic current when the motor is idle, minimizing heat generation.

Protection Mechanisms: Equipped with over-voltage and over-current protections to ensure reliable operation.

Specifications:

Input Voltage: 18–80 VAC or 24–110 VDC

Output Current: Peak current adjustable between 2.4A and 7.2A

Microstep Resolutions: 16 settings, including 400, 800, 1600, up to 51,200 steps/rev

Pulse Input Frequency: Up to 200 kHz

Operating Temperature: 0°C to 65°C

Applications:

The DM860 is suitable for a wide range of applications, including CNC machines, engraving machines, labeling machines, laser cutters, and other automation equipment requiring precise motor control.

For detailed technical information and wiring diagrams, please refer to the DM860T Full Datasheet.
