Closed Loop NEMA 34 Stepper Motor (1274 oz-in 14mm single shaft) and Mating Driver

STEPPERONLINE Nema 34 Closed Loop Stepper System - Complete CNC Control Kit

This professional-grade closed-loop stepper system combines high torque output with precise position feedback for demanding automation applications. The complete kit delivers exceptional performance and reliability for CNC machinery and industrial automation systems.

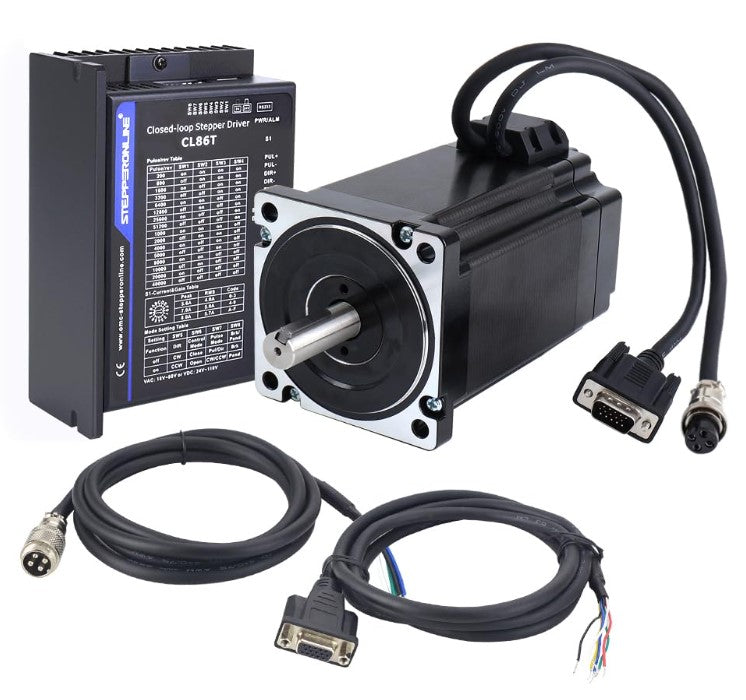

Kit Components:
- 34HS46-6004D-E1000 Closed Loop Stepper Motor
- CL86T V4.1 Stepper Driver
- 1.7m Motor and Encoder Extension Cables
- RS232 Debugging Cable

Technical Specifications:

Motor Specifications:
- Holding Torque: 9.0Nm (1274.5oz.in)
- Phase Current: 6.0A
- Phase Resistance: 0.62 ohms
- Inductance: 6.3mH ±20% (1KHz)
- Encoder Resolution: 1000
- Phase Configuration: 2-phase
- Encoder Output: 100mA current, 60kHz max frequency

Driver Specifications:
- Model: CL86T Version 4.1
- Output Current Range: 0-8.2A
- Input Voltage Range: 18-80VAC / 24-110VDC
- Logic Signal Current: 7-16mA (typical 10mA)
- Pulse Input Frequency: 0-200kHz
- Dimensions: 151 x 97 x 52mm (5.94" x 8.81" x 2.05")

Key Features:
- Closed-loop feedback system for precise positioning
- High-torque output for demanding applications
- Professional-grade construction

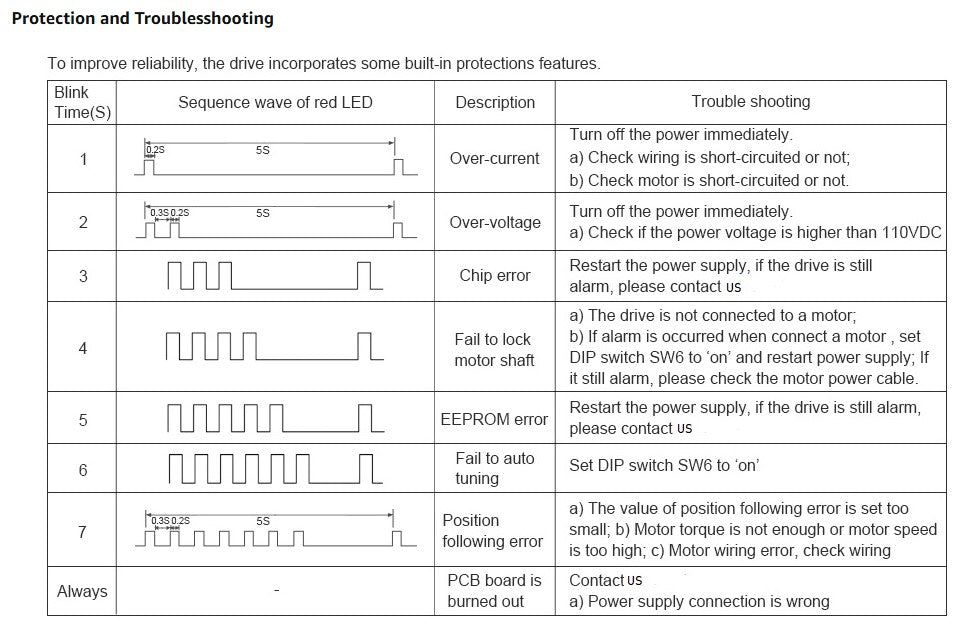

- Comprehensive protection features
- Complete kit with all necessary cables
- Easy system integration
- RS232 interface for programming and diagnostics

Ideal Applications:
- CNC Machinery
- 3D Printers
- Industrial Automation
- Precision Manufacturing
- Carving Machines
- Automated Dispensing Systems
- Professional Motion Control Systems

This complete closed-loop stepper system includes everything needed for professional automation applications. The combination of high torque output and precise position feedback ensures accurate and reliable operation even under varying load conditions. The included debugging interface allows for easy system setup and monitoring.

Important Usage Notes:

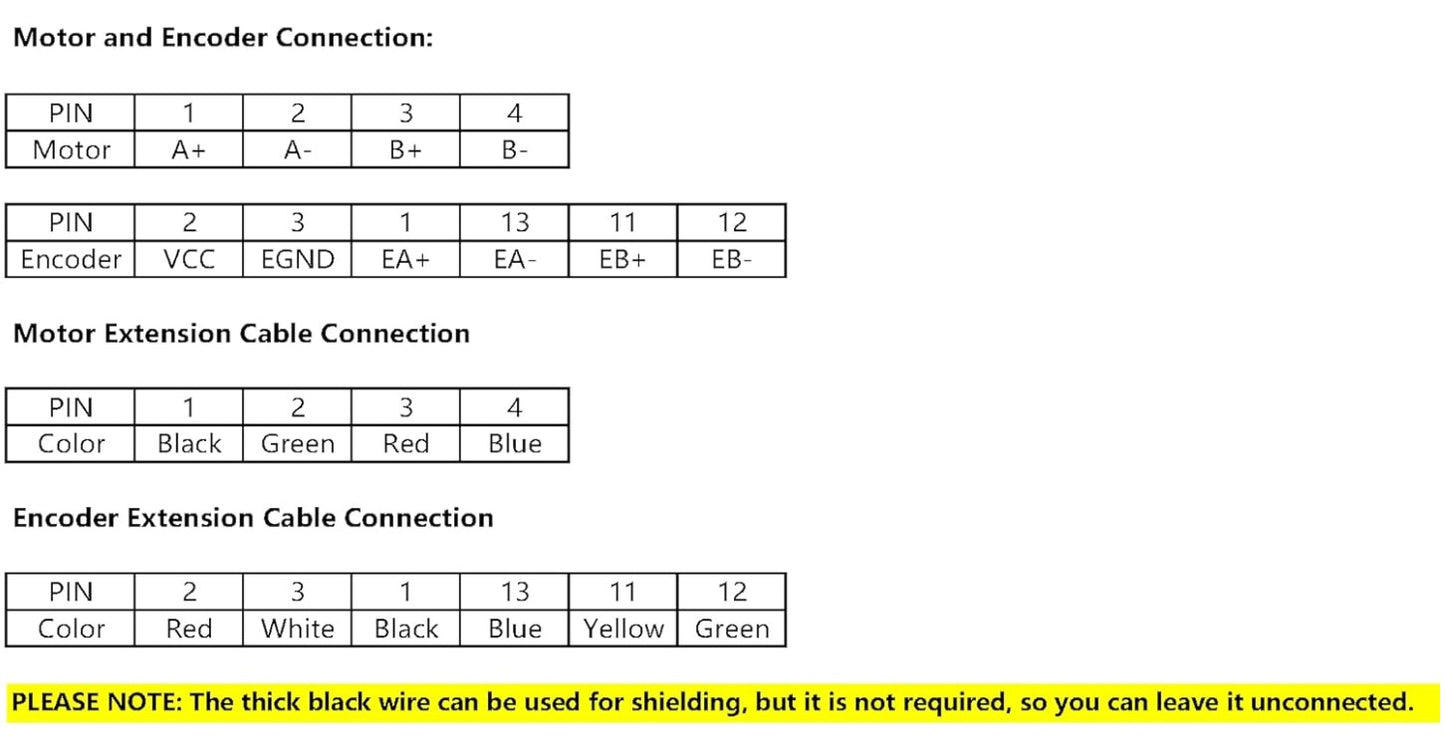

- Shielding wire (thick black) is optional and can be left unconnected
- Motor must be connected to a proper stepper driver - direct power connection will damage the motor
- Professional installation recommended for optimal performance

This professional-grade motion control system delivers the precision, power, and reliability needed for industrial automation applications while providing comprehensive protection features and extensive technical support.
