Closed Loop NEMA 34 Stepper Motor (679 oz-in 14mm single shaft) and Mating Driver

Closed Loop Stepper Motor 1 Axis CNC Kit

Professional-Grade 4.8Nm/679.74oz.in Nema 34 Motor & 4.1-8.2A 24-80VDC Closed Loop Stepper Driver CL86T V4.1

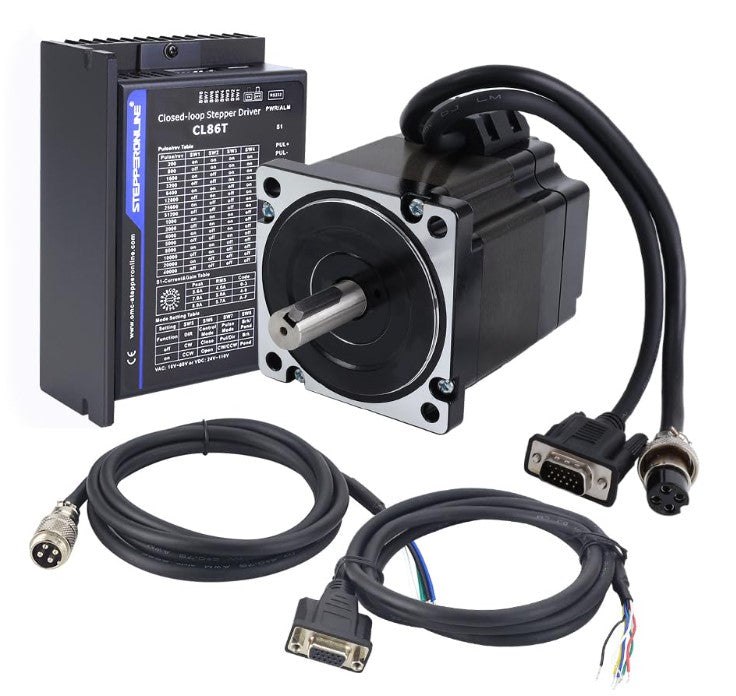

Kit Includes:

• 1× 34HS31-6004D-E1000: 4.8Nm Closed loop stepper motor
• 1× CL86T: Nema 34 Closed loop stepper motor driver V4.1

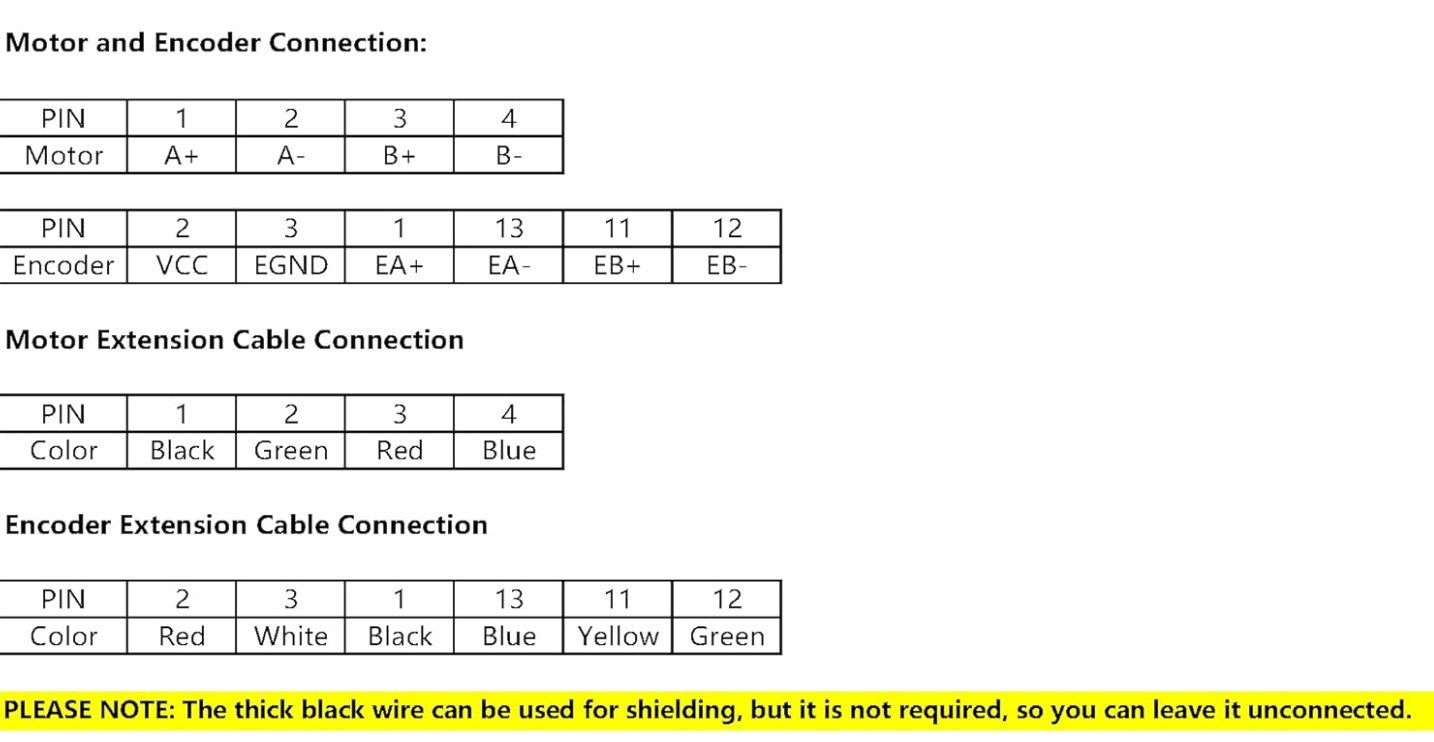

• 1× CE2-M2-18: 1.7m motor and encoder extension cables
• 1× RS232 Debugging Cable

Technical Specifications:

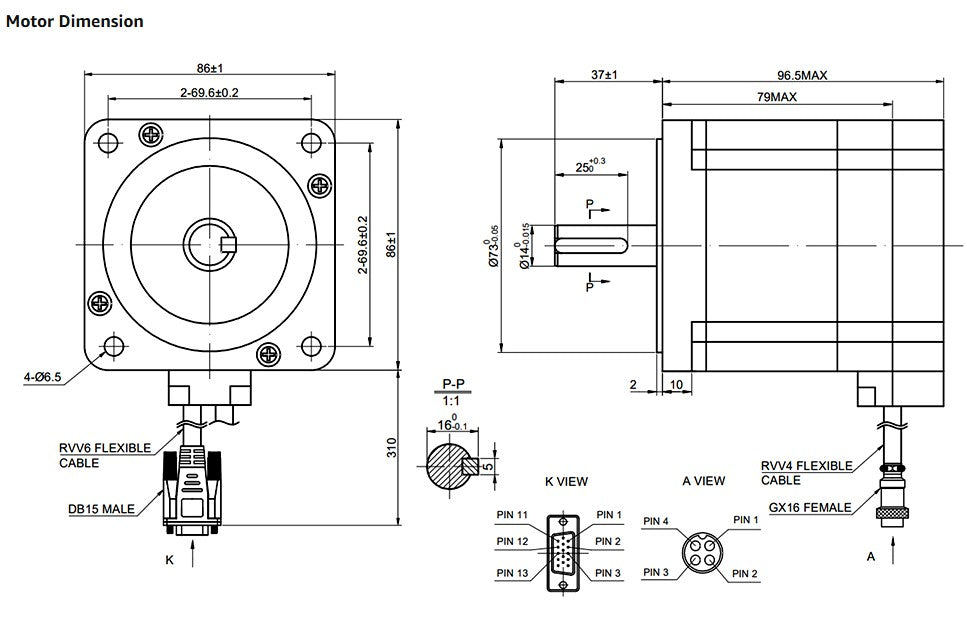

Motor Specifications (34HS31-6004D-E1000):

• Part Number: 34HS31-6004D-E1000
• Number of phases: 2
• Holding Torque: 4.6Nm (651.54 oz.in)
• Rated Current/phase: 6.0A
• Phase Resistance: 0.3 ohms
• Inductance: 3.5mH ± 20% (1KHz)

Encoder Specifications:

• Resolution: 1000
• Output Current: 100mA
• Maximum Output Frequency: 60kHZ

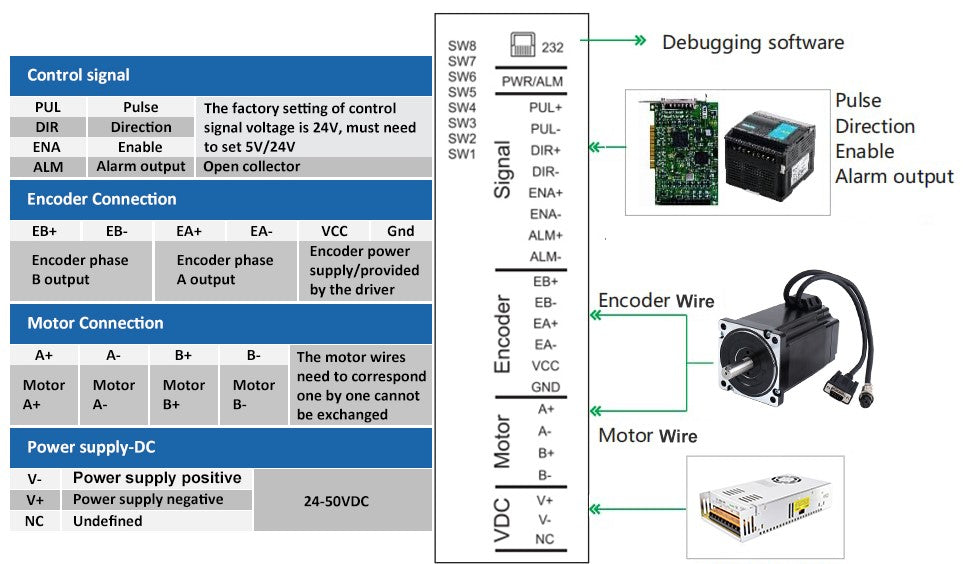

Driver Specifications (CL86T):

• Output Peak Current: 0~8.2A
• Logic Signal Current: 7~16mA (Typical 10mA)
• Input Voltage: +18~80VAC/24~110VDC
• Pulse Input Frequency: 0~200kHz
• Dimensions: 151×97×52mm (5.94"×8.81"×2.05")

Applications:

• 3D Printers
• CNC Machines
• Carving Machines
• Dispensers
• Automation Applications

Upgrade your automation system with this professional-grade closed loop stepper motor kit, engineered for precision and reliability in your demanding applications.
