Woodsmith CNC Kit

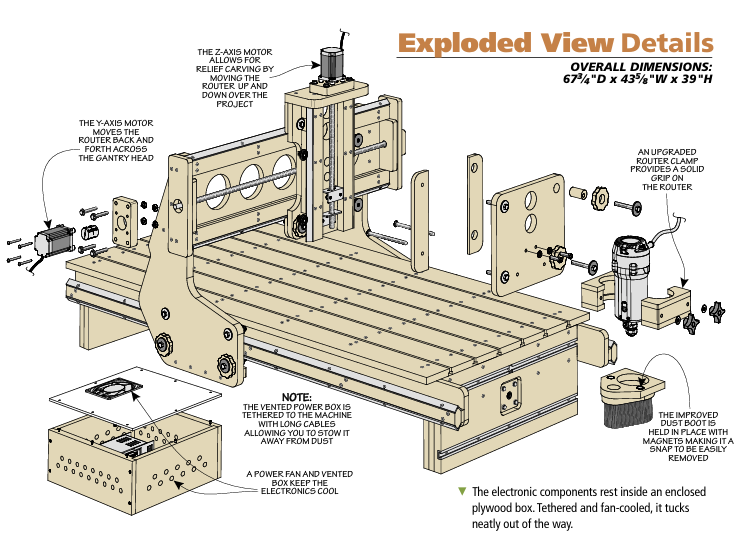

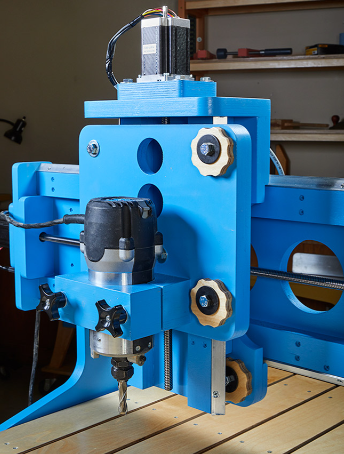

Revolutionize your woodworking and crafting experience with the Woodsmith CNC Router Kit and Plans. Designed for versatility and precision, this kit enables enthusiasts and professionals alike to unlock new dimensions in carpentry, engraving, and artistic creations. With its high-quality components, affordable pricing, and easy assembly, our CNC Router is a must-have tool for your next project. Elevate your woodworking workshop to a new level with our self-made CNC machine, perfect for a range of machining, cutting, and milling tasks. CNC machines, once exclusive to large industrial settings, have evolved alongside technology, becoming more compact and versatile. This evolution has made its way into woodworking shops. Our initiative to introduce a shop-built CNC router aligns with this trend. Offering excellent value, this CNC router has a 24"x48" working area and can be built affordably, contrasting with the higher costs of commercial counterparts. Constructed from Baltic birch plywood, essential hardware, and a readily available electronics kit, it's suitable for both experienced woodworkers and novices interested in integrating CNC technology into their work. Click here to purchase the plans for the Woodsmith CNC. Here, you can conveniently purchase the hardware, mechanical, and electronics parts associated with the plans. This kit and plans are not only an affordable entry into the world of CNC woodworking but also an excellent opportunity for learners at any experience level to become deeply familiar with CNC technology and its electronics. Whether you're a seasoned woodworker or just starting, this kit will guide you through a comprehensive understanding of CNC mechanics and electronics, enhancing your skillset in modern woodworking technology. Free technical support is provided with all products purchased from BuildYourCNC. Parts List: Electronics (3-axis Heavy Gantry Kit): $521.00

• Mach3 USB controller
• (2) NEMA 24 425 oz-in stepper motors
• (2) Drivers (3.0Amp 24-40 Volts, 1-1/64 microstepping)
• (1) NEMA 34 651 oz-in stepper motor
• (1) Driver (6.0Amp 24-70 Volts, 1/2-1/256 microstepping):
• (1) 36v 8.8a Power Supply for Motors and Drivers: $59.95
• (1) 24v 1a Power Supply for controller power: $9.99

Electronics total $551.00. You save $30 with the kit.

Hardware:

• (194) #8 x 11/2" Flat Head Woodscrews
• (24) #8 x 1-3/4" Flat Head Woodscrews
• (20) #8 x 2 1/4" Flat Head Woodscrews
• (52) #6 x 1/2" Flat Head Woodscrews
• (4) 3/8"-16 x 2-3/4" Hex Head Bolts
• (4) 3/8"-16 x 3-1/4" Hex Head Bolts
• (8) 1/8" Thick x 3/8" x 1-1/2" Fender Washers
• (16) 3/8" Shim Washers so the outer race of the bearing does not rub against the 3/8" Washers
• (8) 3/8" x 1-1/4" Washers
• (8) 3/8" Nylon Insert Lock Nuts
• (1) 1"-dia. x 12" rgh. Dowel (Not Included)
• (1) 1-1/4" x 1-1/4" x 2-5/8" Bracket (1/8" Thick) (Not Included)
• (2) 5/16"-18 x 1-1/4" Hex Head Bolts
• (2) 5/16" Washers
• (2) 5/16"-18 Lock Nuts
• (2) #8-24 x 3/4" Machine Screws
• (2) #8-24 Lock Nuts
• (2) #8 Washers
• (4) 1/4"-20 x 2" Machine Screws
• (4) 3/4" O.D. x 1/2"-long Nylon Spacers
• (4) 1/4"-20 T-Nuts
• (4) 3/8" x 2-1/2" Lag Screws
• (8) 5/16" x 2-1/2" Lag Screws
• (24) 5/16" Washers
• (6) #8 -24 x 3/4" Machine Screws
• (6) #8 Lock Washers
• (6) #8 Nylon Insert Lock Nuts
• (6) 5/16" x 1-1/2" Machine Screws
• (6) 5/16" Nylon Insert Lock Nuts
• (16) #8 x 1-1/4" Flat Head Woodscrews
• (8) #8 x 2" Flat Head Woodscrews: $1.52 @ $0.19 ea.
• (4) 5/16" x 1-1/2" Lag Screws: $3.16 @ $0.79 ea.
• (8) #10 -24 x 2" Machine Screws: $1.60 @ 0.20 ea.
• (8) #10 -24 T-Nuts: $0.80 @ $0.10 ea.
• (8) 1/2" O.D. x 1/2"-long Nylon Spacers: $7.20 @ $0.90 ea.

Hardware Total: $112.80

Mechanical Components:

• (4) 1" x 1” x 60" 6061 Aluminum Angle (Long Axis Rails): $78.00 @ 3.90/foot
• (2) 1" x 1” x 31-7/8" 6061 Aluminum Angle (Short Axis Rails): $21.25 @ $3.90/foot
• (2) 1" x 1” x 13" 6061 Aluminum Angle (Z-Axis Rails): $8.45 @ $3.90/foot
• (8) 3/8" ID V-Groove Bearings
• (1) 1/2" x 1/2" Shaft Coupling
• (1) 1-1/2" x 1-1/2” x 24" 6061 Alum. Angle: $24 @ $8.00/foot
• (1) 1/2"-10tpi x 59-1/4" Lead Screws (Long Axis)
• (1) 1/2"-10tpi x 36" Lead Screws (Short Axis)
• (1) 1/2"-10tpi x 15-5/8" Lead Screws (Z Axis)
• (2) 1/2" I.D. x 1-1/8" O.D. Bearings
• (3) 1/2" Anti-Backlash Nut

Mechanical components Total: $503.14
