E-Stop (Emergency Stop) Button With LED Indicator

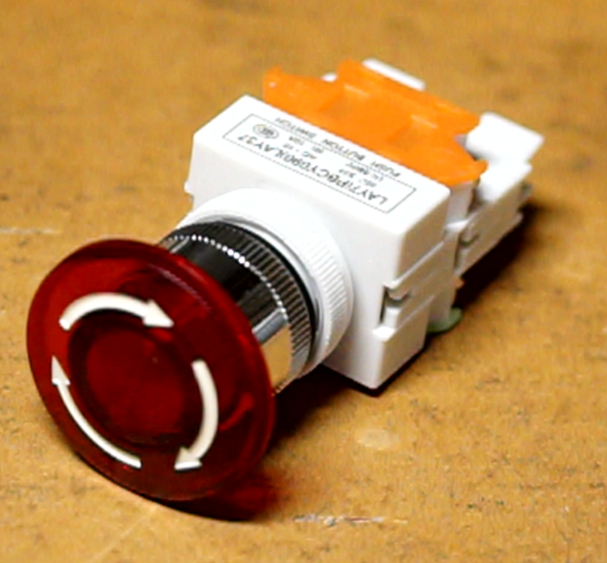

Ensure the safety of your CNC machine and operators with the LAY7(PBCY090)LAY37 Emergency Stop Button featuring an integrated LED indicator. Designed for precision and reliability, this E-Stop switch provides a visible and tactile solution to halt your equipment in critical moments. The integrated LED light ensures real-time visual feedback, enhancing safety and ease of operation in any industrial or workshop environment.

Key Features:

• LED Indicator: Integrated 24V LED provides clear visibility, making it easy to identify the button’s status during operation.
• Durable Design: Robust construction ensures long-lasting performance, even in demanding industrial applications.
• Simple Installation: The non-modular design simplifies the setup process, requiring only a 22 mm (0.86-inch) mounting hole and supporting up to 0.22-inch panel thickness.
• Twist-to-Reset Mechanism: Push to engage and twist to release, with directional arrows for quick and intuitive operation.
• Versatile Wiring Options: Compatible with spade or ring connectors, or direct wiring for seamless integration into your control system.

Technical Specifications:

• Mounting Hole Diameter: 22 mm (0.86 inches)
• Maximum Panel Thickness: 0.22 inches
• Internal Protrusion: 54 mm (2.13 inches)
• Width Inside Panel: 41 mm (1.62 inches)
• Depth Inside Panel: 30 mm (1.18 inches)
• External Protrusion: 28 mm (1.1 inches) in non-engaged state

Enhanced Safety with Integrated LED

The built-in LED indicator elevates the functionality of this emergency stop button by providing a clear, illuminated signal when the button is engaged. This feature is particularly valuable for low-light or high-noise environments where visual feedback is critical. The LED operates at 24V, ensuring low power consumption and compatibility with most industrial control systems.

Easy Installation and Maintenance

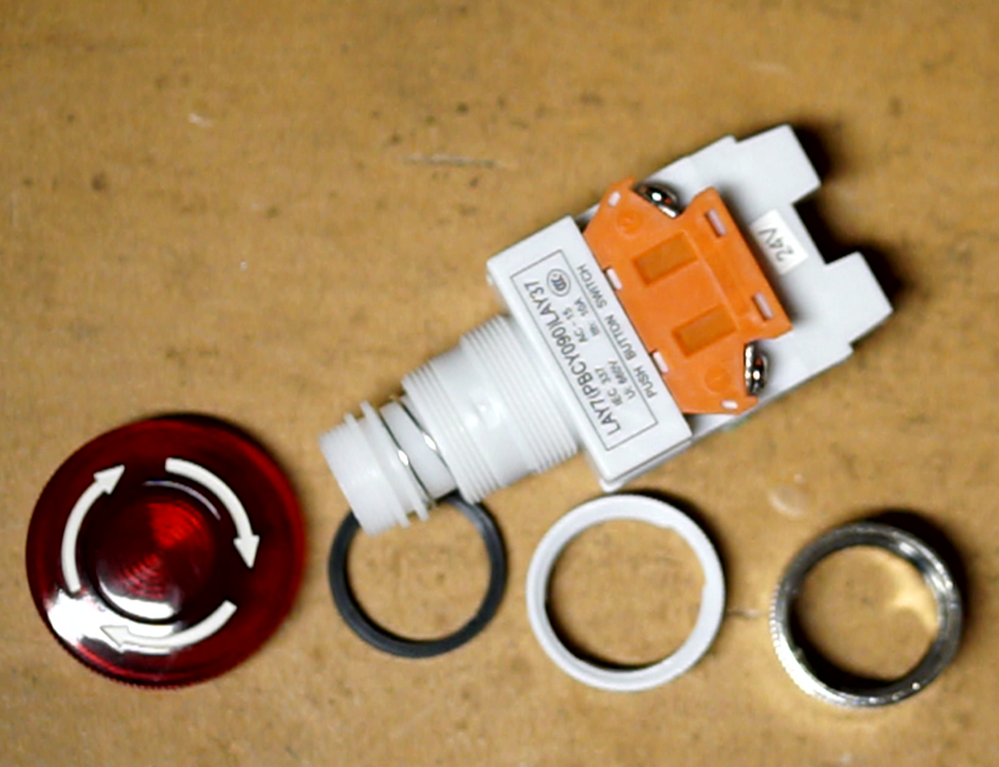

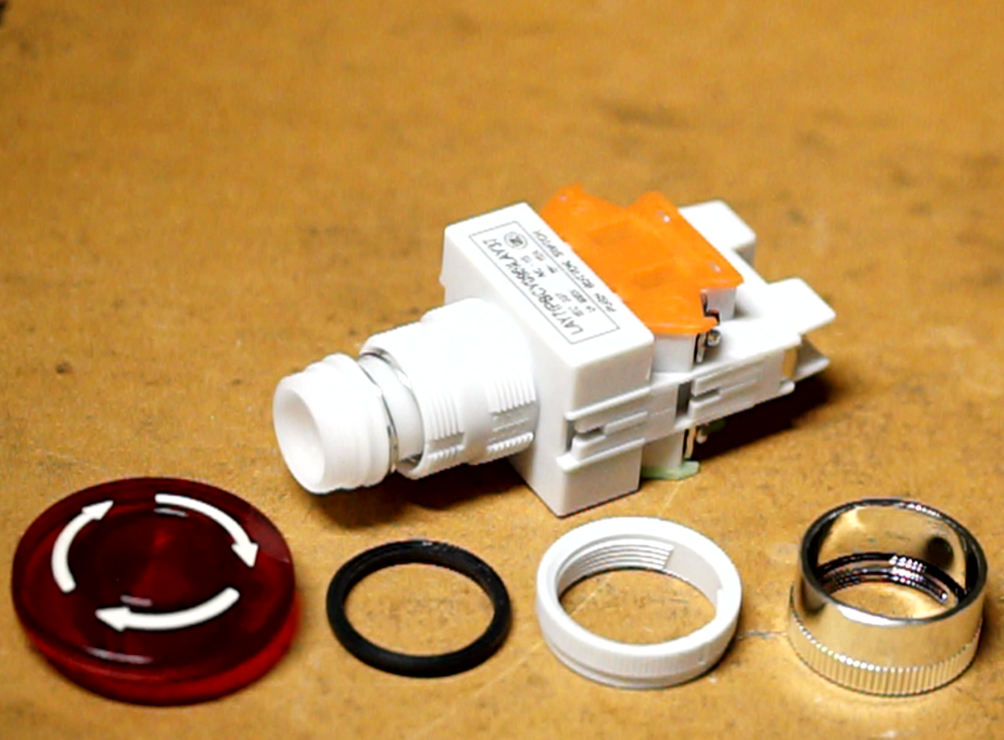

Unlike modular E-Stop buttons, the LAY7(PBCY090)LAY37 simplifies installation with its single-piece body. The mushroom head unscrews to allow easy mounting, secured by two cylindrical nuts for a reliable fit. With no complex disassembly required, this switch is perfect for quick retrofitting or new builds.

Applications:

• Industrial CNC machines
• 3D printers
• Laser cutting systems
• Assembly lines and factory automation
• Workshop and DIY projects

Whether you’re working in a professional industrial setting or a home workshop, the LAY7(PBCY090)LAY37 LED Emergency Stop Button combines safety, functionality, and ease of use. Its compact design and visual feedback make it an indispensable addition to any control panel.
