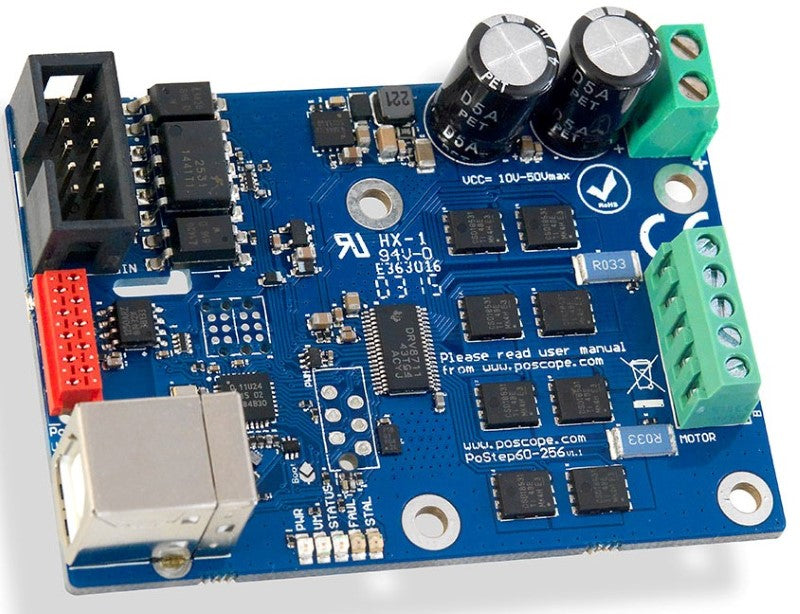

PoStep60-256 Stepper Driver

$64.99 USD

Sale Sold out

Title PoStep60-256 Stepper Driver

Quantity

The PoStep60-256 is a stepper motor driver with 6.0 Amps Phase Current

up to 6.0 Amps Phase Current

Simple current, microstep and other settings with software via USB

Compatible with 4, 6, and 8 wire stepper motors of any voltage

+10 VDC to +50 VDC Power Supply

1, 2, 4, 8, 16, 32, 64, 128 and 256 Micro-steps per Step

Mixed decay mode for smoother moving of motors

3,3V and 5V logic compatible isolated inputs

250 KHz Max Step Rate

0 °C To 70 °C Operating Temperature

LED Power, VM, Status, Fault and Stal indicator

On board temperature sensor

Improved thermal managing

It can be driven from USB without controller

Small Size: 54 mm X 75 mm

Questions & Answers

Will PoKeys57 control servo motors? If so what other componets are needed

As long as the servo motors are paired with drivers that can receive a step pulse and direction signal, then the pokeys57cnc controller will be fine. Most servos and servo drives made for CNC machine accept step pulses and direction signals, but refer to the associated manuals for your servo drives.
When clicking the manual link, it wont let me switch to the American version. How do I get that link?

If you are referring to the polabs website that presents in another language, on that site, there is a button on the top right that says "options" with a down arrow. Click that and click turn off translation.
