Fabricator Pro CNC Machine Digital Plans

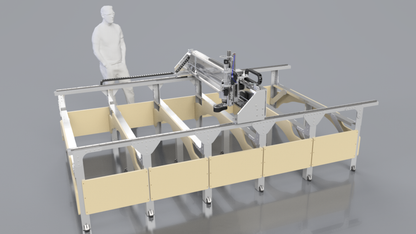

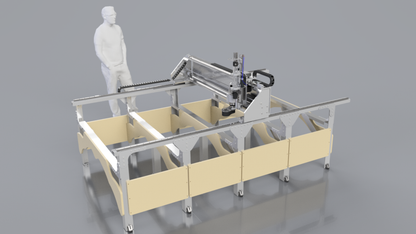

Digital Plans for the Fabricator Pro CNC Router

Build your own industrial-grade CNC router at a fraction of the cost with these digital plans for the Fabricator Pro CNC router. Designed for affordability and ease of construction, these plans empower you to create a high-performance, all-metal CNC machine using readily available materials and components. Whether you're a hobbyist, entrepreneur, or small business owner, this is your gateway to professional CNC machining without the high price tag.

Why Choose These Plans?

1. Cost-Effective Industrial Capability:

   • Achieve the precision and performance of an industrial CNC machine for a fraction of the cost by sourcing materials locally and assembling it yourself.

2. Low Barrier to Entry:

   • These plans are designed for builders of all skill levels. With clear, detailed instructions and minimal specialized tools required, you can build a professional-grade machine without prior experience.

3. Maximized Value:

   • The plans are tailored to use standard aluminum profiles and commonly available components, significantly reducing material costs while ensuring premium quality.

4. Upgradeable and Future-Ready:

   • Start with the basics and scale up as your needs grow. The design is adaptable for plasma or laser cutting, giving you room to expand your machine’s capabilities.

Included in the Plans

1. Detailed Bill of Materials (BOM):

   • A complete list of parts, including affordable alternatives to keep costs down while maintaining quality.

2. Cutting and Drilling Templates:

   • Full-scale (1:1) templates for precise fabrication, making it easy for beginners to follow.

3. Step-by-Step Assembly and Wiring Instructions:

   • Clear, beginner-friendly instructions guide you through every stage of the build.

4. Expert Tips and Techniques:

   • Insights on sourcing materials, optimizing assembly, and tuning your machine for professional results.

5. Adaptability for Various Applications:

   • Perfect for woodworking, metal fabrication, and prototyping, with the flexibility to handle a wide range of projects.

What Makes This CNC Unique?

1. Industrial-Grade Performance:

   • With a 10-inch Z-axis travel, a robust aluminum structure, and steel rails, this machine delivers precision and durability comparable to commercial CNC routers.

2. Minimal Specialized Tools Needed:

   • The design relies on standard tools and materials, ensuring that anyone with basic DIY skills can build the machine.

3. Affordable Replacement Parts:

   • Components are chosen for their availability and low cost, so maintenance and upgrades are budget-friendly.

4. No Experience Required:

   • With straightforward instructions, even those new to CNC building can achieve outstanding results.

Refund Policy for Digital Plans

Due to the nature of digital content, refunds are not offered for digital plans. Once purchased, digital files are considered delivered and used, and cannot be returned. Please review the description carefully before purchasing.

Volume of Information

These plans are comprehensive, spanning approximately 40 pages of 24"x36" sheets, ensuring every aspect of construction is covered in detail.

Digital Format and Printing

The digital plans are provided in DFWx format or PDF format and should be printed on 24"x36" paper. This format ensures clarity and allows direct use of templates for precise fabrication.

See the Machine in Action

Experience the power and precision of the Fabricator Pro CNC router through our curated video demonstrations. These videos showcase the machine's versatility, ease of use, and ability to handle projects ranging from intricate woodworking to metal fabrication.

What You’ll Discover:

• Professional Results on a Budget: Witness the capabilities of a machine you can build affordably.
• Beginner-Friendly Operation: See how accessible CNC machining can be.
• Versatile Applications: From hobby projects to small-scale manufacturing, the possibilities are endless.
• Expert Tips: Learn techniques that make CNC fabrication more efficient and effective.

Take the first step toward owning a high-performance CNC router with these affordable and accessible plans. Build a machine that delivers professional results while staying well within your budget. Unleash your creativity and unlock industrial-level precision at a fraction of the cost.

Making an Aluminum Laser Nozzle using the Fabricator Pro:

Making Parts in Fusion360 then machining them on the Fabricator Pro Part 6:

Fabricator Pro 8'x17' CNC Router Build in Wisconsin Part 1:

Fabricator Pro 8'x17' CNC Router Build in Wisconsin Part 2:

Fabricator Pro 8'x17' CNC Router Build in Wisconsin Part 3:

Fabricator Pro 8'x17' CNC Router Build in Wisconsin Part 3:
