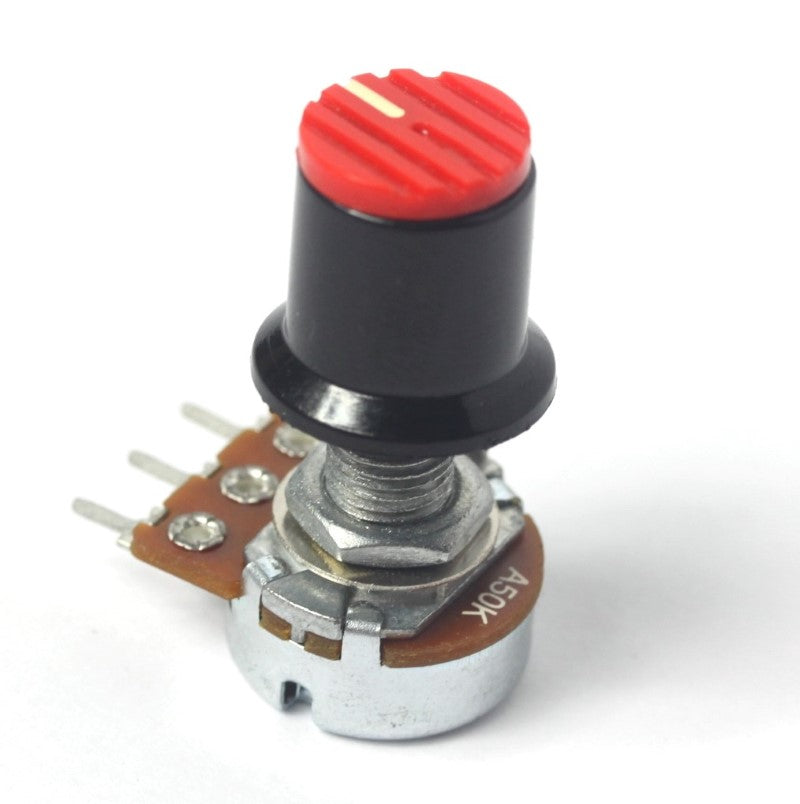

50K Potentiometer Panel Mount (Non Trimmer) With Knob

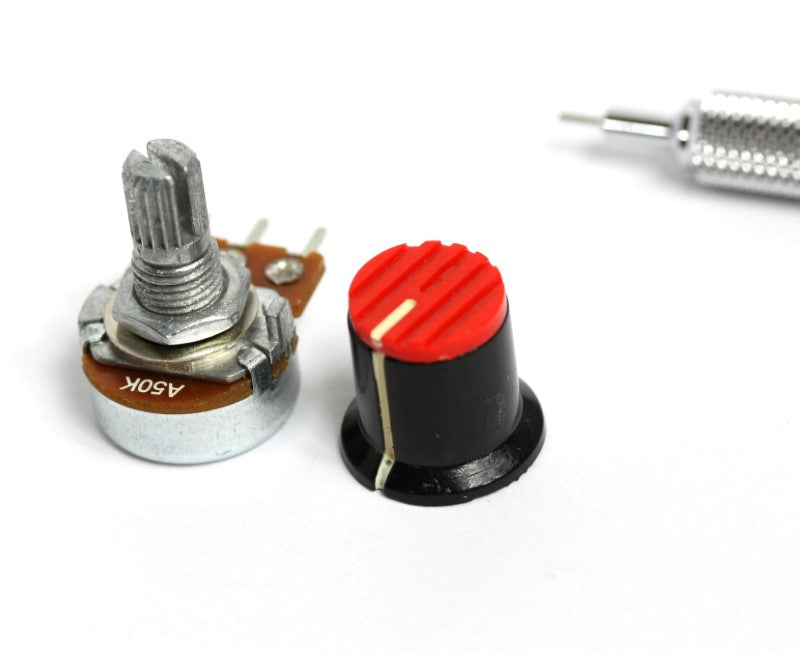

50K Potentiometer Kit. Includes Small adjustable knob for sleeker look and easier, more accurate operation. The potentiometer can be used as a voltage divider to obtain a manually adjustable output voltage at the slider from a fixed input voltage applied across the two ends of the potentiometer. Potentiometers are also very widely used as a part of displacement transducers because of the simplicity of construction and because they can give a large output signal. Potentiometers can also be used as position feedback devices for motion control.

• Mounting Style: Panel
• Taper: Audio
• Resistance: 50 kOhms
• Power Rating: 60 mW
• Element Type: Carbon
• Shaft Type: Knurled / Serrated
• Termination Style: Pin
• Tolerance: 20%
• Shaft Diameter: 6 mm
• Shaft Length: 0.33 in
