NEMA 23 Closed-Loop Stepper Motor Kit with 5080D4 Driver, 439 oz-in Torque, 1/4" Shaft, 1000-Line Encoder, and 3m Cable

The NEMA 23 Closed-Loop Stepper Kit is a high-performance "Hybrid Servo" solution designed to bridge the gap between standard stepper motors and expensive AC servo systems. By integrating a 1000-line encoder with a high-torque stepper motor, this kit provides real-time position feedback to the driver, effectively eliminating the "lost steps" common in traditional open-loop systems. This makes it an ideal upgrade for CNC machinery and automation projects that require absolute reliability and precision.

High-Torque KL23-31N-1000 Closed-Loop Motor
The heart of this kit is the KL23-31N-1000 2-phase NEMA 23 motor, delivering a powerful 3.1 N·m (439 oz-in) of holding torque. Engineered for demanding industrial environments, this motor features a 1/4-inch shaft, a 1.8° step angle, and a high-resolution 1000-line integrated encoder (providing 4000 counts per revolution). With a body length of 105mm and a weight of 1.6kg, it offers a high power-to-size ratio. Electrically, the motor is rated for 5A per phase with a low 1.8 mH inductance and 0.4 Ω resistance, ensuring excellent high-speed torque characteristics and an operating temperature range of -10°C to 50°C.

5080D4 Hybrid Servo Driver Technology
Control is managed by the 5080D4 Digital Driver, a sophisticated controller specifically tuned for 2-phase closed-loop operation. Supporting a wide input voltage range of 20 to 50 VDC and a maximum output current of 8.0A, the driver supports both Pulse/Direction and CW/CCW control modes. Its advanced logic allows the system to close the position loop between the motor and the drive, resulting in smoother motion, significantly reduced motor heating, and lower audible noise. Unlike traditional servos, this hybrid system requires no tuning, providing a "plug-and-play" experience with zero overshooting and high-speed stability.

Complete Integration & Application

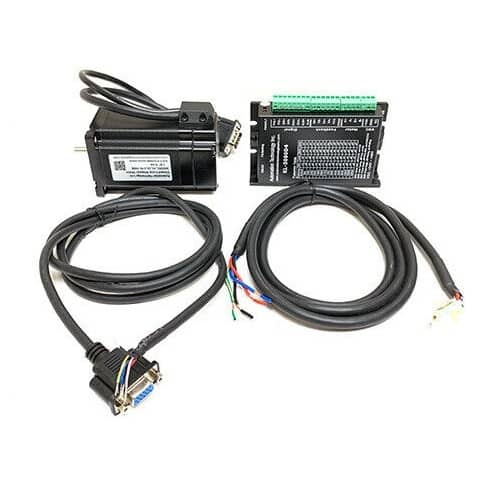

This comprehensive kit includes the 5080D4 driver, the KL23-31N-1000 motor, and a 3-meter (9.8 ft) shielded cable set, providing a complete motion package ready for installation. It is a preferred choice for CNC routers, mills, laser cutters, and plasma tables, as well as laboratory automation and packaging machinery. By providing constant feedback, the system ensures that if a physical obstruction or over-limit condition occurs, the driver can trigger an alarm rather than simply losing position, making it a robust upgrade path for users outgrowing open-loop stepper performance.

Technical Specifications & Configuration
The system is optimized for high-reliability operation with standardized electrical parameters to ensure long-term durability. For immediate setup with this specific motor and encoder combination, the driver’s DIP switches should be configured as follows: SW5 OFF, SW6 OFF, SW7 OFF, and SW8 OFF. This pre-defined configuration ensures the driver is correctly mapped to the motor’s internal parameters, allowing for immediate deployment in small to medium-speed precision applications without the need for complex software calibration.

Why Choose This Closed-Loop Kit?
In precision CNC work, a single lost step can ruin hours of machining time. This closed-loop kit provides the peace of mind that your machine is exactly where the software thinks it is. By combining the high starting torque of a stepper with the feedback intelligence of a servo, you get a system that runs cooler, quieter, and—most importantly—with 100% positional accuracy.
