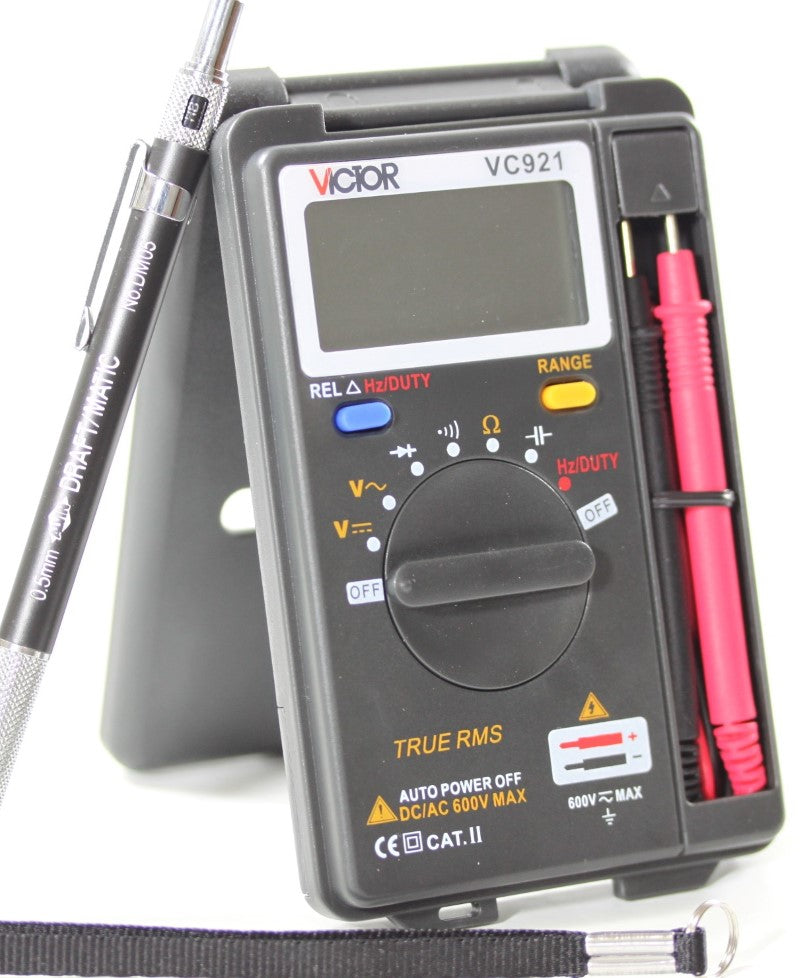

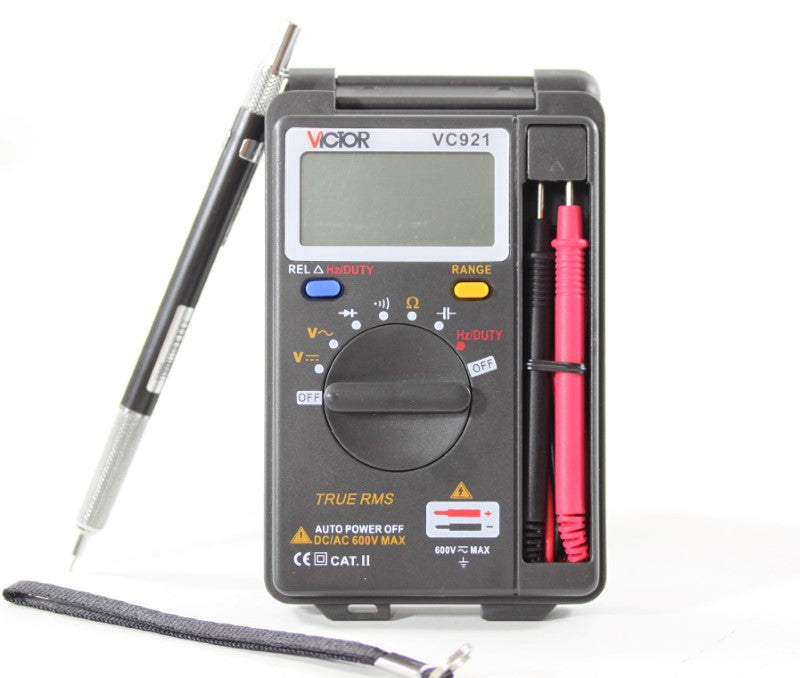

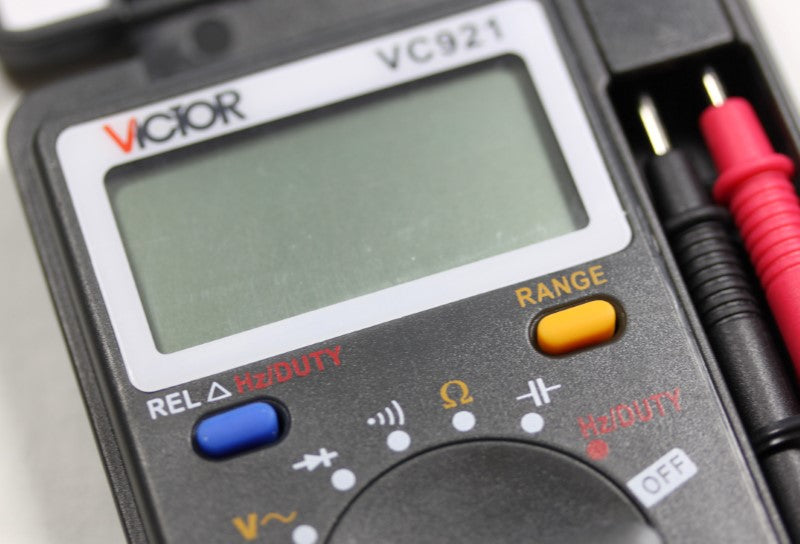

Handheld Auto Ranging Digital Multimeter

Handheld Auto Ranging Digital Multimeter

Regular price $17.95 USD
Regular price Sale price $17.95 USD
Sale Sold out
Title
This pocket-sized handheld multimeter is perfect for those looking for an affordable multimeter. This digital multimeter can be used to test voltage, current, and resistance. This particular multimeter also features auto-ranging.
  • DC Voltage: 400mV/4V/40V/400V/600V Basic Accuracy ±(0.5%+4)
  • AC Voltage: 400mV/4V/40V/400V/600V Basic Accuracy ±(0.8%+6)
  • Resistance: 400O/4kO/40kO400kO/4MO/40MO Basic Accuracy ±(0.8%+4)
  • Capacitance: 4nF/40nF/400nf/4uF/40uF/200uf Basic Accuracy ±(3.5%+8)
  • Frequency: 100Hz/1kHz/10kHz/100kHz/1MHz/10MHz Basic Accuracy ±(0.5%+4)
  • Diode test v
  • Continuity buzzer v
  • Low battery indication v
  • Data Hold v
  • Auto power off v
  • Function protection v
  • Frequency v
  • Duty cycle measuring v
  • Input impedance: 10MO
  • Sampling rate: 3 times/s
  • AC Frequency response: 40~400Hz
  • Operation way: Auto range
  • Max. Display: 3999
  • LCD size : 55×43mm 2.16" x 1.69"
  • Product Dimensions: 117×80×19mm 4.6" x 3.14" x .75"
Includes 2 AAA batteries
