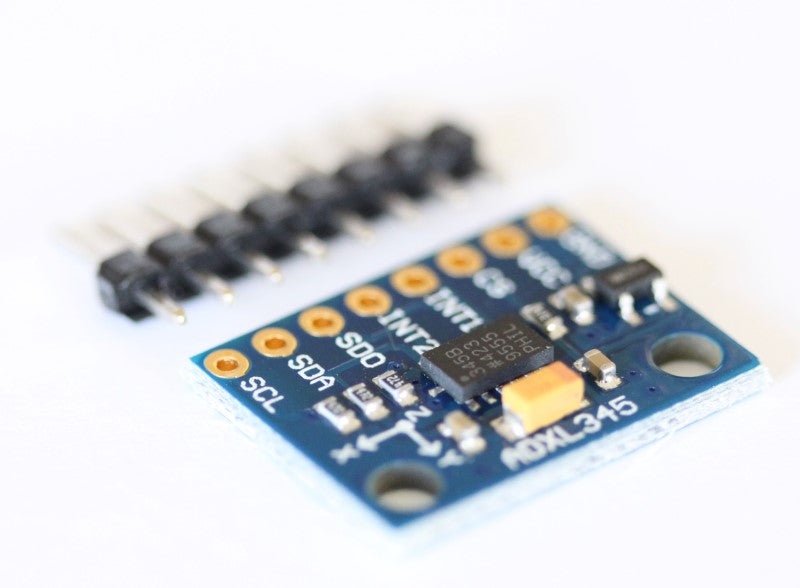

• ADXL 345 Accelerometer breakout with headers

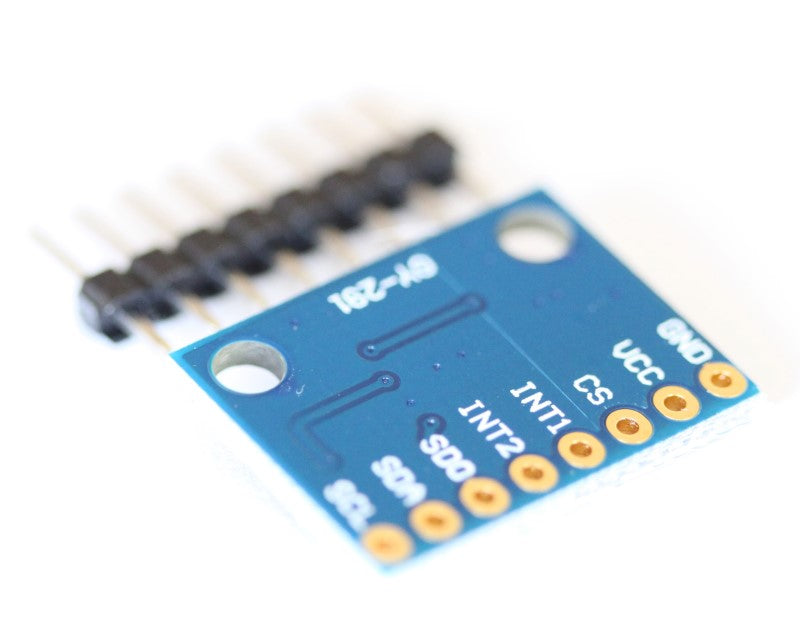

  • Back of the ADXL 345 Accelerometer

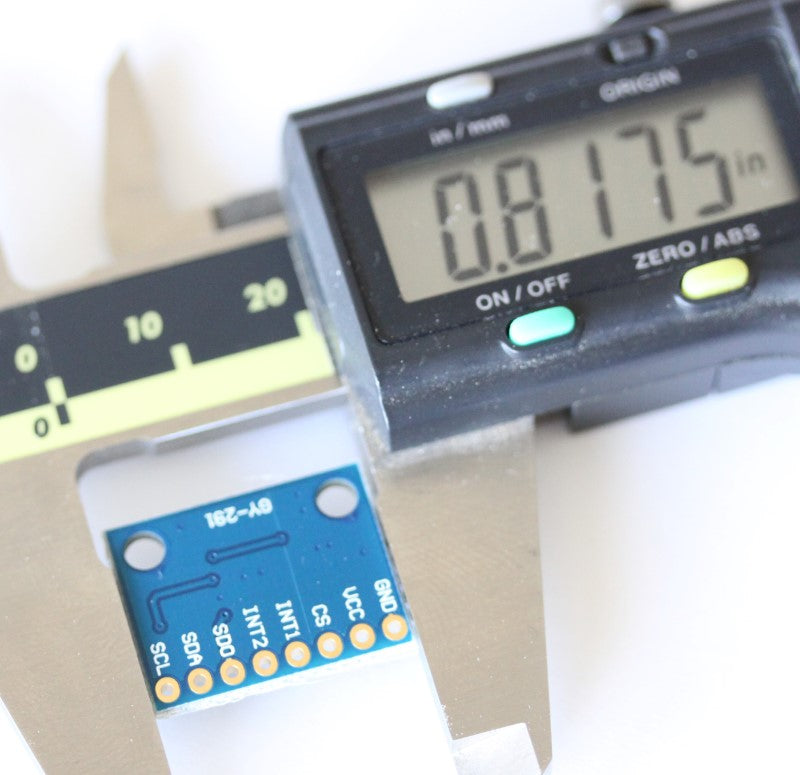

  • Width measurement of the ADXL 345 accelerometer breakout. .8175 inches or 20.76 mm.
  • Measurement of the depth of the ADXL 345 accelerometer at .636 inches or 16.1544 mm
1 4

BuildYourCNC

Accelerometer ADXL 345 Breakout Board with I2C and SPI Interface

Accelerometer ADXL 345 Breakout Board with I2C and SPI Interface

$27.95 USD
$27.95 USD
Sale Sold out
Title
ADXL345 3-Axis Accelerometer. Measures shock, tilt, force, acceleration, and gravity up to 16gs. Interface using I2C or SPI for assured accuracy. An accelerometer measures the amount of gravity. Great for robotics, measuring tilt and shock, this 3-Axis accelerometer gauges gravity up to 16 Gs. This board will give you the power to create a self balancing robot, a model airplane that flies on autopilot, a G-Force detector, the possibilities are endless! The module will support single and double tap detection as well as activity-inactivity monitoring. Utilizes high resolution measurement (13 bit) and ultra-low power consumption. For use with a 3.3v power supply only Features:
  • SPI or I2c communication.
  • Designed for 3.3v power supply only.
  • Memory management system with a 32-level FIFO buffer to store data with minimized host processor activity.
  • Ultralow power consumption: 40 µA in measurement mode and 0.1 µA in standby mode.
  • High resolution enables measurement of inclination changes less than 1.0°.
  • Ready-to-use examples save development time.
