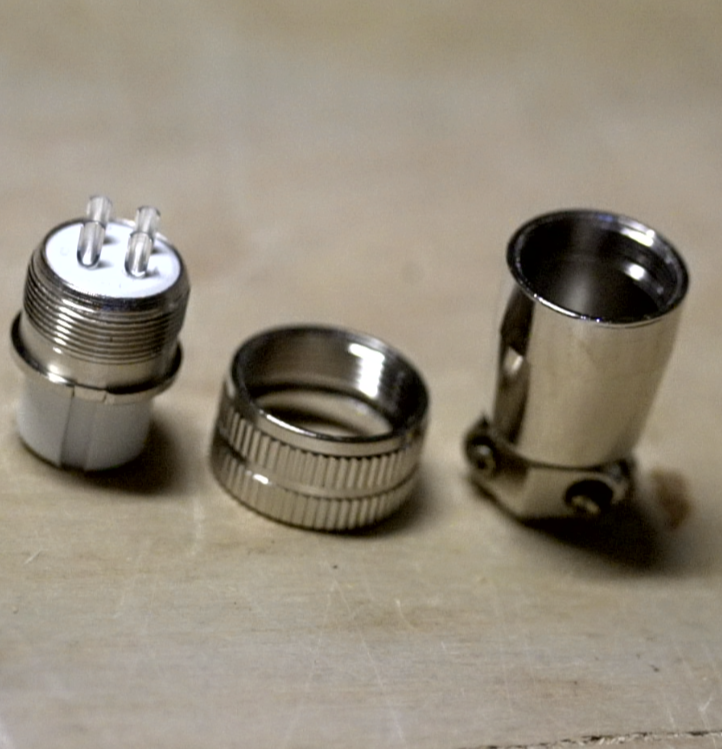

Round Female 4 pin 17mm (H17) Threaded Spindle Connector

H17 4-Pin Industrial Spindle Connector Professional-Grade CNC Machine Control Connector

Key Features:

• Premium 4-pin female configuration
• Precision H17 threading specification
• Industrial-grade metal construction with chrome/nickel plating
• Three-piece modular design for reliable assembly
• High-tolerance machined components
• Vibration-resistant locking mechanism
• Square-pattern pin arrangement
• Robust environmental protection

Technical Specifications:

• Thread Type: H17 standard
• Pin Configuration: 4-pin female
• Housing Material: Chrome/nickel-plated metal
• Pin Material: High-conductivity copper alloy
• Contact Resistance: ≤3mΩ
• Protection Grade: IP67
• Operating Temperature: -25°C to +85°C
• Rated Current: 5A per pin
• Rated Voltage: Up to 250V AC/DC
• Insertion/Extraction Life: >500 cycles

Package Contents:

• 1x Connector Head with Female Pins
• 1x Threaded Locking Ring
• 1x Connector Body
• Installation Guide

Applications:

• CNC Spindle Motors
• Industrial Control Systems
• Automation Equipment
• Precision Machinery
• Machine Tool Control
• Motion Control Systems

Installation Notes:

• Hand-tighten locking ring to ensure proper connection
• Align pins before insertion to prevent damage
• Regular inspection recommended for optimal performance
• Keep contact surfaces clean and free of debris

Safety Features:

• Secure locking mechanism prevents accidental disconnection
• Environmental sealing protects against dust and moisture
• Shielded construction for EMI protection
• Polarized design prevents incorrect insertion

Compatibility:

• Standard H17 thread mounting systems
• Compatible with most industrial spindle control systems
• Reverse compatible with earlier H-series connectors
