Terminal Blocks for DIN Rails

The Erayco UK2.5B-GR is a professional-grade DIN rail terminal block engineered for reliable electrical connections in industrial applications. This versatile terminal block combines superior materials with thoughtful design features to ensure safe and efficient wire termination.

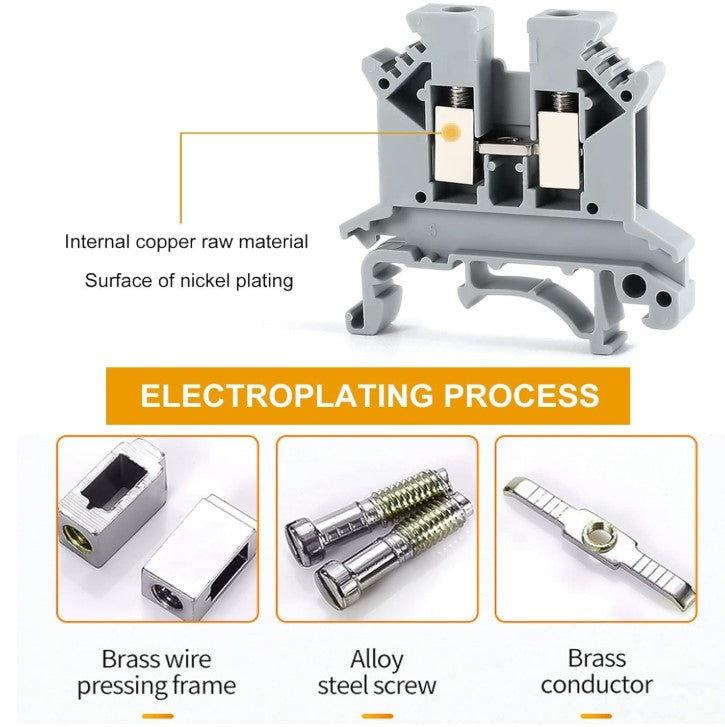

Constructed with premium materials, including a durable PA66 nylon housing that meets UL94V0 flame retardant standards, copper alloy conducting bodies, and corrosion-resistant nickel-plated screws, this terminal block is built to last. The robust screw clamp mechanism ensures secure connections while preventing wire damage.

Key Technical Specifications:

• Voltage Rating: 600V (UL), 690V (IEC)
• Current Rating: 20A (UL), 32A (IEC)
• Wire Range:
  • Solid conductor: 24-12 AWG (0.2-4mm²)
  • Flexible conductor: 20-12 AWG (0.2-2.5mm²)
• Block Width: 6.2mm

Distinguished Features:

• Universal mounting foot for easy DIN rail installation
• Enlarged wire funnel entry for simplified conductor insertion
• Space-saving compact design for optimal panel utilization
• Vibration-resistant construction
• Superior thermal stability for consistent performance
• Color: Gray (GR)

This terminal block excels in demanding industrial environments where reliability and safety are paramount. Its comprehensive certification and robust construction make it ideal for control panels, machinery, and other industrial electrical applications requiring secure wire termination.

Perfect for both OEM installations and field wiring, the UK2.5B-GR combines professional-grade quality with practical features that streamline installation and ensure long-term performance.
