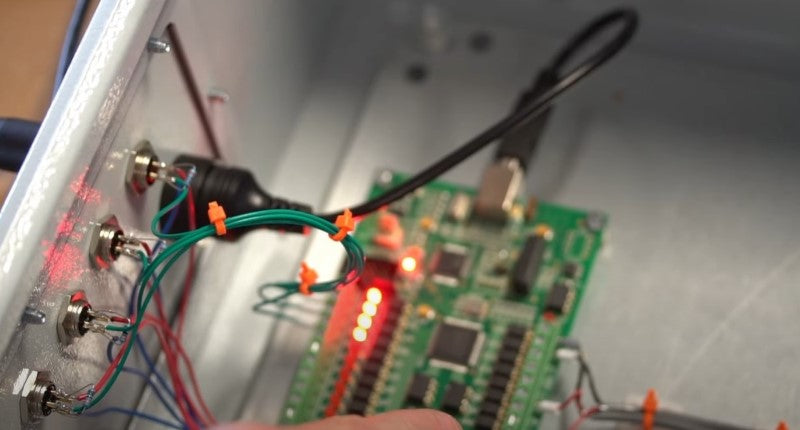

CNC electronics cabinet for closed loop stepper motors and drivers The proximity sensor connectors on the cnc electronics cabinet panel The strain relief nuts on the side of the CNC electronics system cabinet Expanded cabinet that can hold a VFD withing the cnc electronics system cabinet The back side of the connector panel of the cnc electronics system cabinet The connector panel focusing on the motor connectors of the cnc electornics system cabinet The drivers and power supplies inside of the cnc electronics system cabinet Power supply wiring for the cnc electronics system cabinet The fan that cools the cnc electronics in the cnc electronics system cabinet The main connector panel of the cnc electronics system cabinet The wiring behind the connector panel of the cnc electronics system cabinet Example of Customer supplied electronics for the cnc electronics system cabinet Example customer supplied electonics of the controller for the cnc electronics system cabinet Example of customer supplied electronics of the power supply and contactor for the cnc electronics system cabinet Example of customer electronics of the 24v power supply for the cnc electronics system cabinet Example of customer supplied electronics of the drivers for the cnc electronics system cabinet Example of customer supplied electronics of the connector and power button panel for the cnc electronics system cabinet Testing the sensors for the customer supplied electronics for the cnc electronics system cabinet
CNC electronics cabinet for closed loop stepper motors and drivers The proximity sensor connectors on the cnc electronics cabinet panel The strain relief nuts on the side of the CNC electronics system cabinet Expanded cabinet that can hold a VFD withing the cnc electronics system cabinet The back side of the connector panel of the cnc electronics system cabinet The connector panel focusing on the motor connectors of the cnc electornics system cabinet The drivers and power supplies inside of the cnc electronics system cabinet Power supply wiring for the cnc electronics system cabinet The fan that cools the cnc electronics in the cnc electronics system cabinet The main connector panel of the cnc electronics system cabinet The wiring behind the connector panel of the cnc electronics system cabinet Example of Customer supplied electronics for the cnc electronics system cabinet Example customer supplied electonics of the controller for the cnc electronics system cabinet Example of customer supplied electronics of the power supply and contactor for the cnc electronics system cabinet Example of customer electronics of the 24v power supply for the cnc electronics system cabinet Example of customer supplied electronics of the drivers for the cnc electronics system cabinet Example of customer supplied electronics of the connector and power button panel for the cnc electronics system cabinet Testing the sensors for the customer supplied electronics for the cnc electronics system cabinet
Price Options Your Cart
Base Options (select one)

Includes free technical support.Learn More
Basic: No VFD will Reside in Cabinet
$1200

Includes free technical support.Learn More
Inclusive Setup: Accommodates VFD Integration
$1350
Electronics: Choose one if not supplying your own

Includes free technical support.Learn More
4 Axis NEMA 34 1200 oz-in
$1039.00

Includes free technical support.Learn More
3 Axis Closed Loop NEMA 34 1600 oz-in
$1090.00

Includes free technical support.Learn More
4 Axis Closed Loop NEMA 34 1600 oz-in
$1420.00

Includes free technical support.Learn More
3 Axis NEMA 24 425 oz-in
$451.10

Includes free technical support.Learn More
4 Axis NEMA 24 425 oz-in
$531.50

Includes free technical support.Learn More
3 Axis NEMA 34 1200 oz-in
$752.00
Upgrades

Includes free technical support.Learn More
Ethernet/USB Controller for Mach3 or Mach4
$162.00
Introduction:

Discover great performance with our Plug-and-Play CNC Control System, perfect for any CNC machine or router. Experience effortless plug-and-play installation and high-torque precision up to 12Nm with our ready-to-use solution.

Description:

Dominate the realm of CNC machining with our Plug and Play CNC Control System, intuitively designed for both might and precision, accommodating high-torque NEMA 34 motors up to 12Nm. Seamlessly integrating into your workflow, this system effortlessly elevates your craftsmanship to new heights.

Nestled within a robust cabinet, the system offers a complete solution with high-grade stepper motors, reliable drivers, solid power supplies, a power push-button contactor, and dual proximity switches for accurate axis calibration. For your peace of mind, an emergency stop button is conveniently installed on the cabinet to ensure you can halt operations instantly when necessary.

To maintain the integrity of your control signals, we provide shielded motor cables, sensor cables, and internal wiring to protect against any electrical interference.

Understanding the Base Price: At the core of our customizable CNC Control System are two base price options to cater to different needs. The first base price provides the essentials for those who are supplying only the CNC electronic components, covering expert labor for wiring, shielding, connectors, and the standard suite of cables for a 4x8 CNC machine, along with the robust cabinet and precision hardware for mounting. The second base price is for those who require a larger cabinet capable of housing a spindle VFD. If you have a VFD or wish to include one in your setup, you should select this base price option to ensure a perfect fit within your cabinet. Both options lay the groundwork for the additional components and features you'll select to complete your system.

Price Options and Customization: Tailoring your CNC system is straightforward with our transparent price options. Every selection includes high-quality power supplies, drivers, motors, CNC controller, and a contactor for the illuminated on/off push button—ensuring a cohesive and responsive setup. If you're not providing your own CNC electronic components, you'll need to choose between a 3-axis or 4-axis system, depending on the complexity of your projects. Additionally, select the size of the motors to match the power requirements of your operations. These choices will build upon the base price to form a complete package that's ready to perform right out of the box, catering to your specific machining demands. Specifications: NEMA 23 motors have a dual 1/4" (6.35mm) shaft (Dual shaft means there is a shaft at the front and a shaft at the back), NEMA 34 motors have a single 14mm shaft. The electronics will include the appropriate number of power supplies to drive all motors at their full torque along the full rated PRM of the motor (for example, a 4 axis NEMA 23 electronics requires 3 amps per motor which sums to 12 amps, so two 48V power supplies with 8 amps each will be included). The Mach3 USB controller is supplied with the standard electronics packages. If you wish to use Mach4, upgrade to the ethernet/usb controller.

Shipping Your System: Please note, the shipping cost is not included in the base price due to the custom nature of each system, which determines the size and weight of the final product. Shipping within the US domestic region is estimated at approximately 400 USD for freight. You may choose to arrange your own shipping method, or we can facilitate this for you, ensuring your system arrives safely and ready for integration.

With each purchase, ample cable is included for a 4x8 CNC router. Should your aspirations grow, additional cable is just a click away.

Our control systems are customized for your specific needs, and we ask for a two-week lead time to ensure you receive a product that meets our stringent quality standards.

For those setting up their system for Mach3, a Mach3 license will be required, conveniently available here. Mach4 enthusiasts are not left out—a Mach4 license is just a click away.

Choosing the spindle VFD upgrade not only broadens your system's capabilities but also adjusts the cabinet size to accommodate the additional hardware, with the pricing reflecting this enhancement. The spindle VFD is pre-wired for direct control, making it simple to manage your spindle's start, stop, and speed.

A Windows-based computer will bring this CNC control system to life, offering a stable and user-friendly platform.

Elevate your CNC experience with our Plug and Play CNC Control System, where safety and precision go hand in hand. Embrace fewer interruptions and more productive hours, whether you're carving intricate designs or charting the next course for your sailing ventures.

Explore Our Craftsmanship: We believe in showing you the precision and care that goes into each of our CNC Control Systems. To truly appreciate the quality and functionality of our work, we invite you to watch a series of videos showcasing our team assembling these systems and demonstrating what you can expect from your own. Witness the seamless process and the exceptional results that our systems deliver.
